Electrical sub-metering
Non-intrusive electrical measurement system installed without interruption

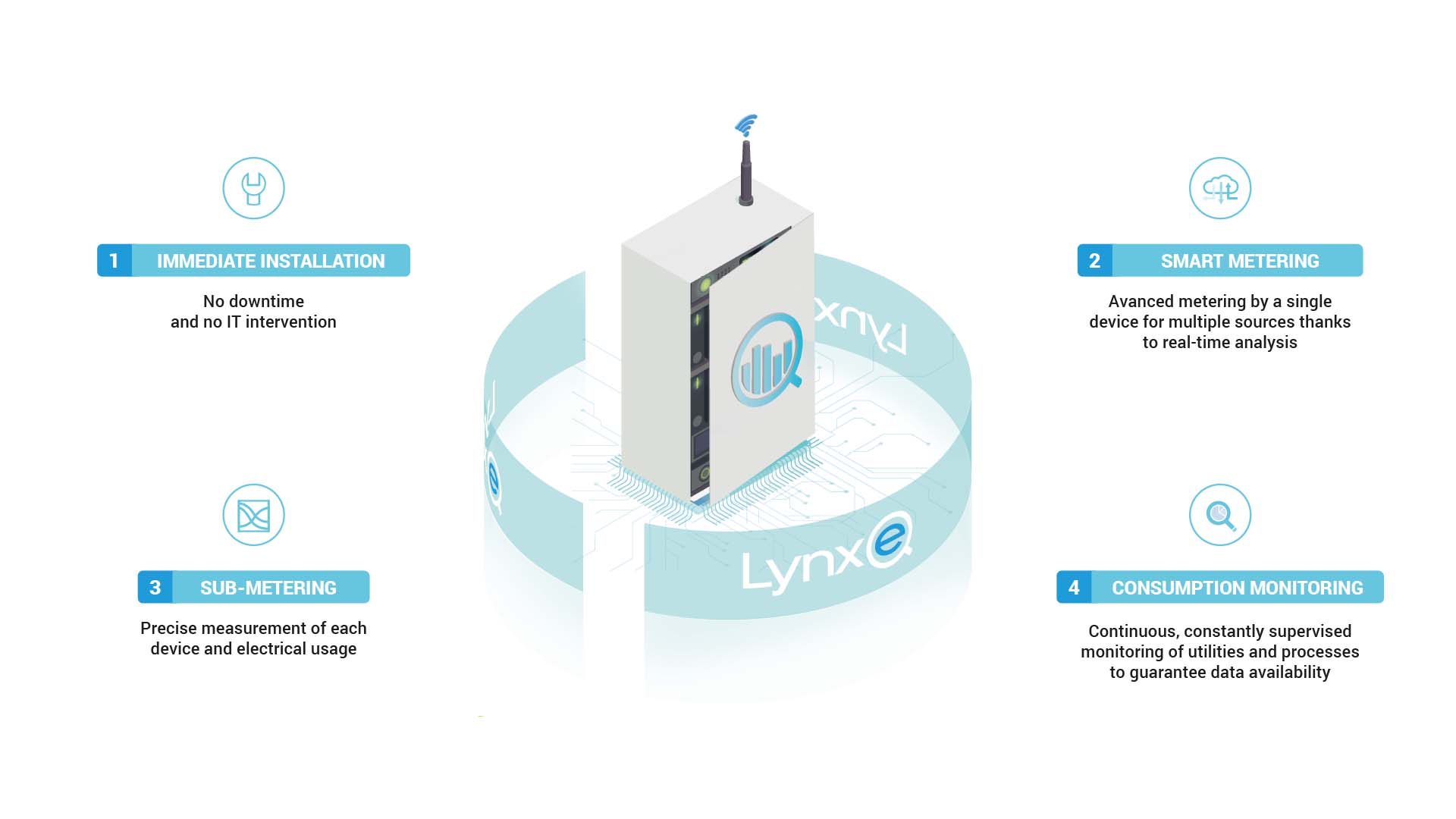

The Lynx-e is a non-intrusive electrical sub-metering system installed under voltage, without interruption or process disruption. Qualisteo's Lynx-e measurement centers enable monitoring of electrical consumption of equipment, appliances, and usages, regardless of the type of electrical installation (distribution board or low-voltage switchboard) by measuring the electrical consumption of circuit breakers in buildings of all kinds (industrial, tertiary, ERP, etc.), and allow the analysis of single-phase or three-phase loads.
Easy integration

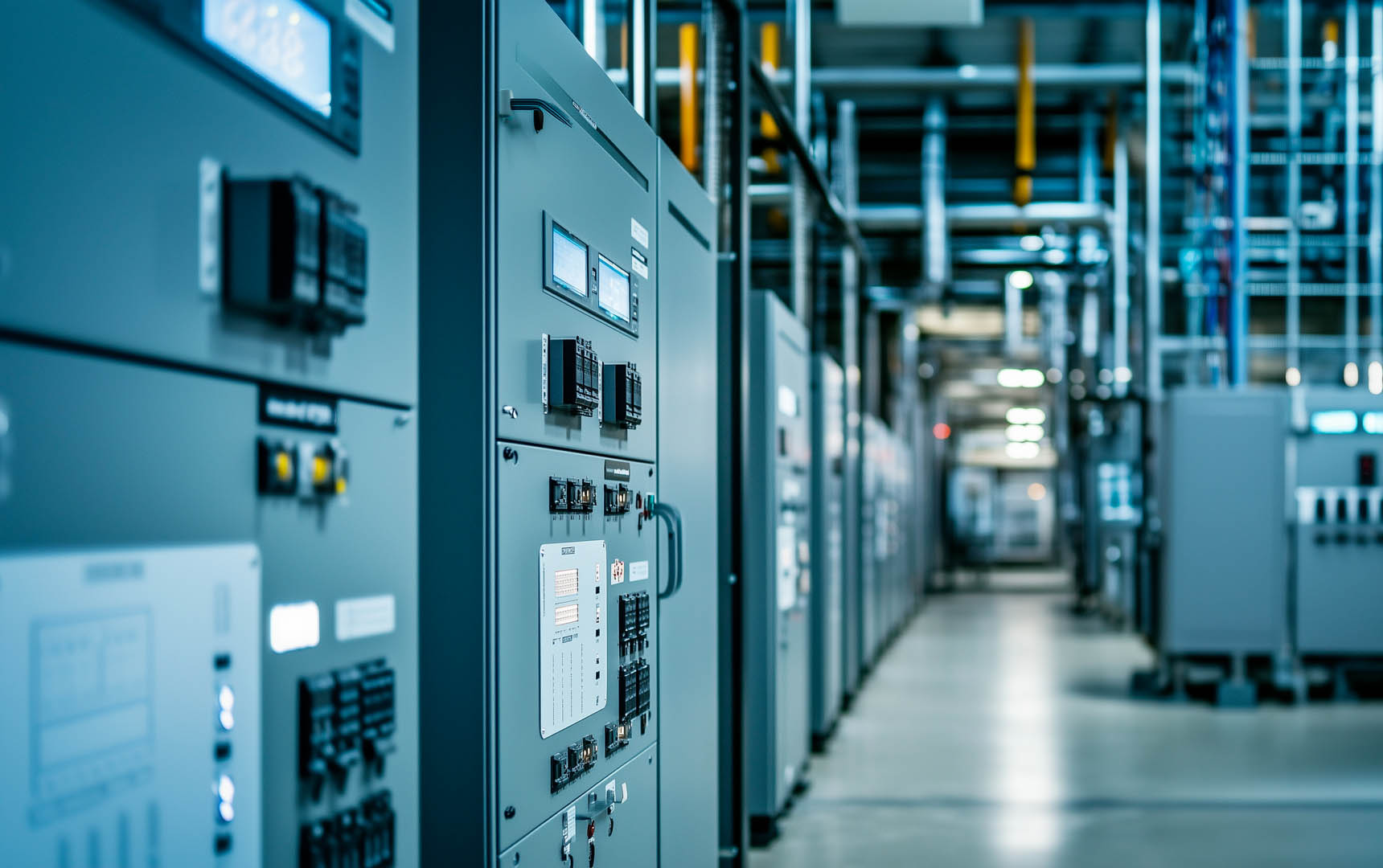

Lynx-e measurement centers can be installed in electrical rooms: directly installed on the wall or on a tripod for temporary audits. The current sensors meet the installation constraints of new or existing buildings without limitation. They are installed at the level of circuit breakers from 120A to 2400A per strand. The Lynx-e allows measurement setup for up to 44 three-phase outlets (up to 4000A) per concentrator.
EASY INTEGRATION
Installed under voltage without interruption
Installed without connection to the local IT network
Voltage up to 1000 Volts, 50 and 60 Hz
MEASUREMENT
Measures active, reactive, and apparent energies
Data logging
Graphical display in monthly, weekly, daily, hourly formats, and real-time data with a resolution down to 1 minute
Up to 128 inputs per device (44 three-phase outlets) per concentrator (up to 4000A)
Single-phase and three-phase
MONITORING
Real-time measurement of electrical values by zone, usage, and equipment
Display of analyzed data
ALERTS
Real-time visualization of alarms and alerts
Alarm logging
Comments on actions
SUPERVISION
Remote monitoring of Lynx system operation
Remote maintenance and updates
Continuous maintenance service available
MANUFACTURING
100% Made in France by Qualisteo
Data Access
Measurement data accessible via the Wattseeker platform, API, or Modbus TCP server.
Certification and Compliance IEC 61557-12
Lynx² measurement centers are certified compliant with IEC 61557-12 standards (guaranteeing performance and suitability of the measurement center for environmental conditions specific to industrial and tertiary applications) by the LNE (Laboratoire National de Métrologie et d’Essais). Lynx² measurement centers meet all international certifications.
